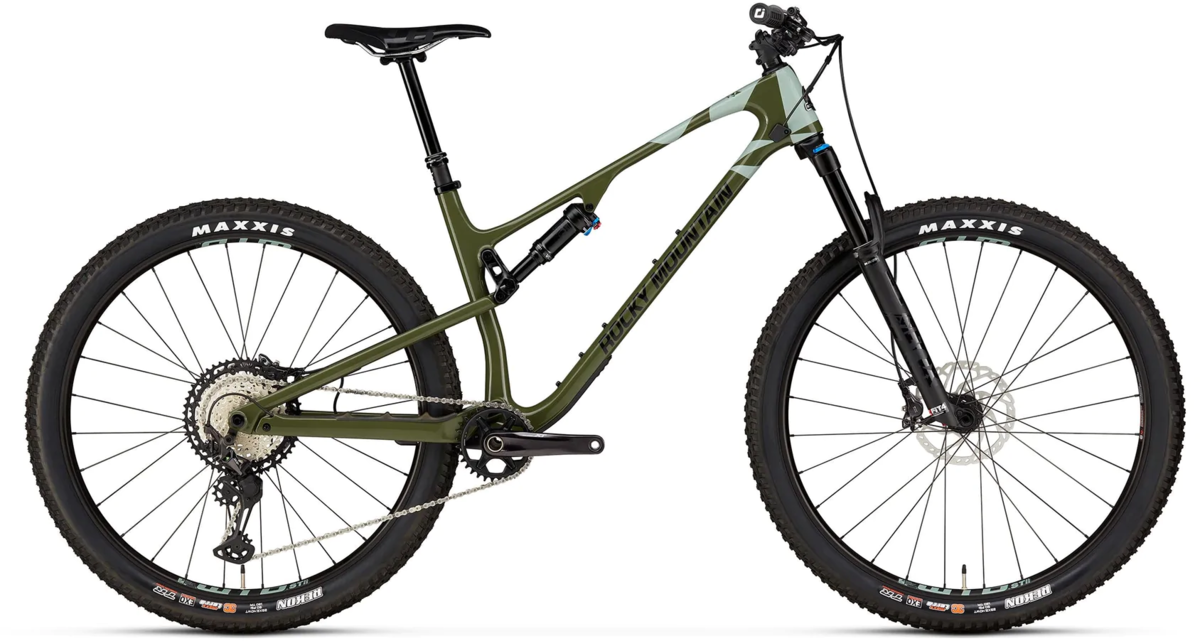

Rocky Mountain Element Carbon 70

Rocky Mountain Element Carbon 70
This item is currently not available.

Details

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You're now in your Element—always.

Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch

Geometry

Geometry Chart:
SizeX-Small (27.5)Small (29)Medium (29)Large (29)
Ride-4 Position Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack
Top Tube Horizontal (mm) 542 577 605 632
Head Tube Angle (deg) 64.7 65 65 65
Head Tube Length (mm) 90 105 115 125
Seat Tube Angle (deg) 75.7 76 76 76
Seat Tube Length (mm) 355 380 420 445
Rear Centre (mm) 426 436 436 436
Bottom Bracket Drop (mm) 28 47 47 47
Reach (mm) 397 425 450 475
Stack (mm) 561 606 615 624
Standover Height (mm) 769 810 808 806
Wheelbase (mm) 1127 1173 1202 1231
Sizes:
X-Small 27.5”: 142.5 - 157.5 cm / 4’8” - 5’2”
Small 29”: 157.5 - 170 cm / 5’2” - 5’7”
Medium 29”: 167.5 - 177.5 cm / 5’6” - 5’10”
Large 29”: 175 - 188 cm / 5’9” - 6’2”
X-Large 29”: 185.5 - 198 cm / 6’1” - 6’6”

Specs

Frame SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-4 Adjustable Geometry + Suspension Rate. 120mm Travel. SMOOTHWALL Carbon Rear Triangle
Fork Fox 34 Float Performance Elite 130mm | FIT4 Damper | 44mm Offset
Rear Shock Fox Float DPS Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Rims WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape | Valves Incl
Hubs Front: Rocky Mountain Sealed Boost 15mm
Rear: DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes DT Swiss Competition 2.0/1.8/2.0
Tires F: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 | R: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4
Bottom Bracket Shimano SM-BB71
Crankset Shimano XT | 32T | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm
Shifters Shimano XT
Rear Derailleur Shimano XT
Cassette/Freewheel Shimano XT 10-51T
Chain Shimano M8100
Brakes Shimano XT 2 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm
Handlebars Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Tape/Grips ODI Elite Pro Lock On
Stem Rocky Mountain 35 XC | 5° Rise | All Sizes = 50m
Headset FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seatpost Race Face Turbine R (by Fox) Dropper 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle WTB Silverado Race 142
Pedals Sold Separately

* Subject to change without notice.
